Product details

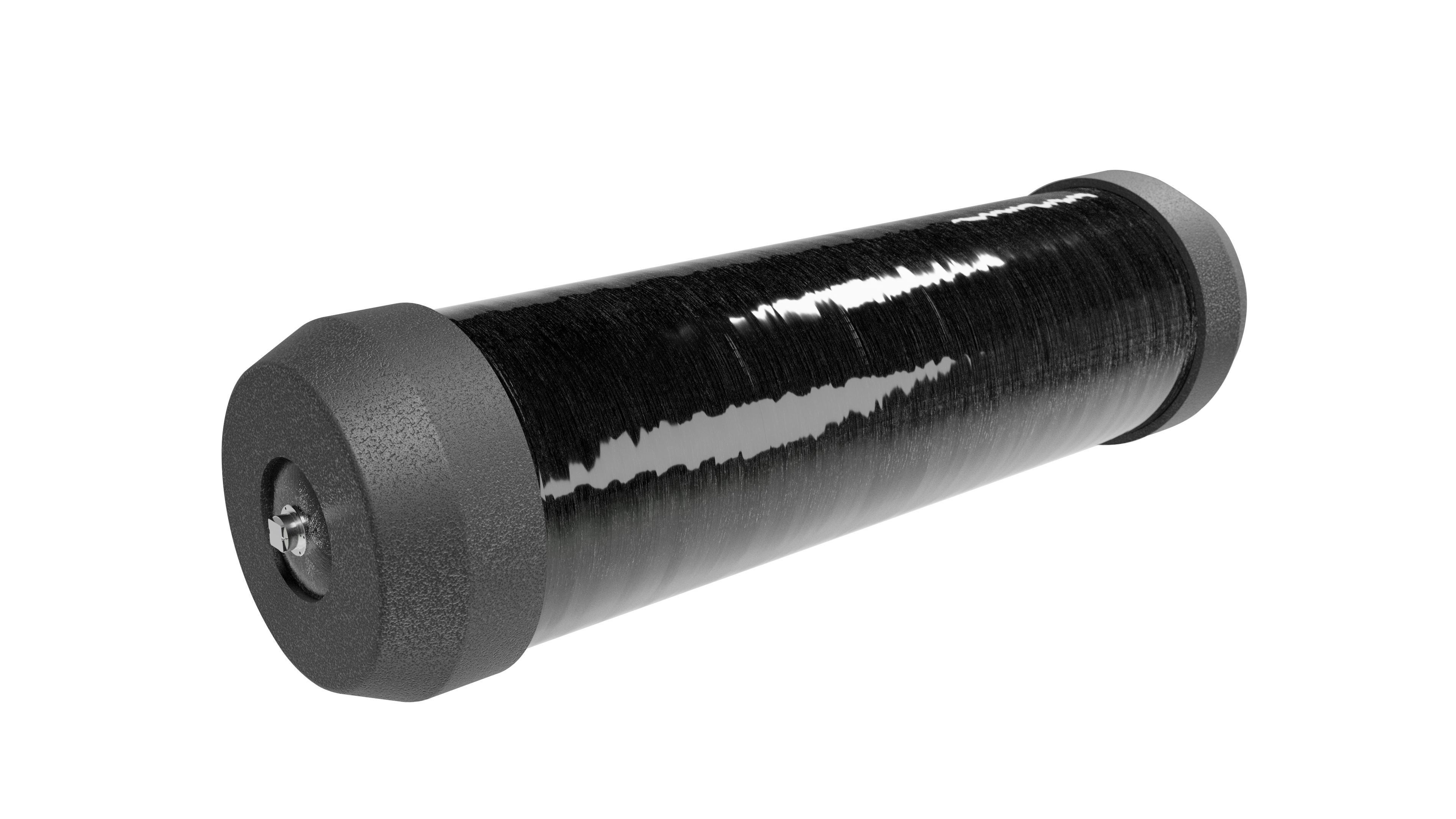

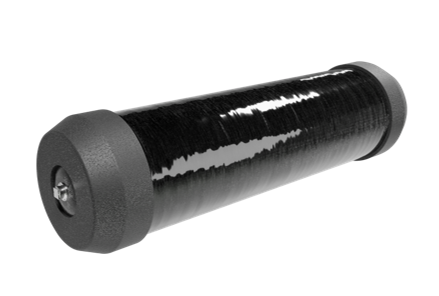

Hydrogen cylinder Type 4

Referred to as: Composite compressed gas cylinders Type 4, 35MPa or 70MPa, certified UNECE R134 Phase 1 and Phase 2 (R134-02), EC79 or GB/T 42612
0086-13402133384
Product Introduction

Type IV Hydrogen cylinders for commercial vehicles, buses and coaches

FORVIA develops advanced Type IV hydrogen cylinders designed to maximize onboard hydrogen storage while minimizing system weight. Combining a lightweight thermoplastic liner with a high-strength carbon fiber composite structure, these cylinders offer an optimized weight-to-performance ratio, helping vehicle manufacturers increase driving range, preserve payload and improve operational efficiency.

Available at 350 bar (35 MPa) and 700 bar (70 MPa), FORVIA Type IV hydrogen cylinders address a wide range of mobility applications and vehicle integration requirements, from commercial vehicles to heavy-duty trucks, buses and coaches.


UNECE R134, GB/T 42612 certified cylinders for hydrogen mobility

Safety and regulatory compliance are at the core of FORVIA's hydrogen storage solutions. Depending on the cylinder reference and target market, FORVIA Type IV cylinders are certified according to key international standards and regulations, including UNECE R134 Phase 1 and Phase 2 (R134-02), EC79 and GB/T 42612. This portfolio enables FORVIA to address hydrogen mobility requirements across different regions and applications.

Designed for demanding mobility applications, FORVIA's hydrogen storage solutions combine high-pressure storage, lightweight design and flexible vehicle integration, supporting the transition to zero-emission mobility across commercial and heavy-duty transportation.

Advanced hydrogen storage technology

FORVIA's latest generation of Type IV hydrogen cylinders has been developed to meet the requirements of commercial mobility, where long range, fast refueling and vehicle availability are critical.

Key benefits include:

- Increased onboard hydrogen capacity

- Lightweight storage architecture

- Longer driving range

- Optimized payload capacity

- Reduced total cost of ownership

- Automotive-grade safety and durability

Through manufacturing optimization, automation and standardization, FORVIA has also significantly reduced production costs by 80% while increasing industrial scalability.

Proven industrial expertise

FORVIA is one of the leading providers of hydrogen storage technologies worldwide, supported by extensive manufacturing capabilities and real-world operational experience.

Today, FORVIA's hydrogen solutions are backed by:

- More than 70,000 hydrogen cylinders delivered

- More than 34 million kilometers accumulated in operation

- Four hydrogen production facilities across Europe and Asia

- Expertise spanning Type I, Type III and Type IV storage technologies

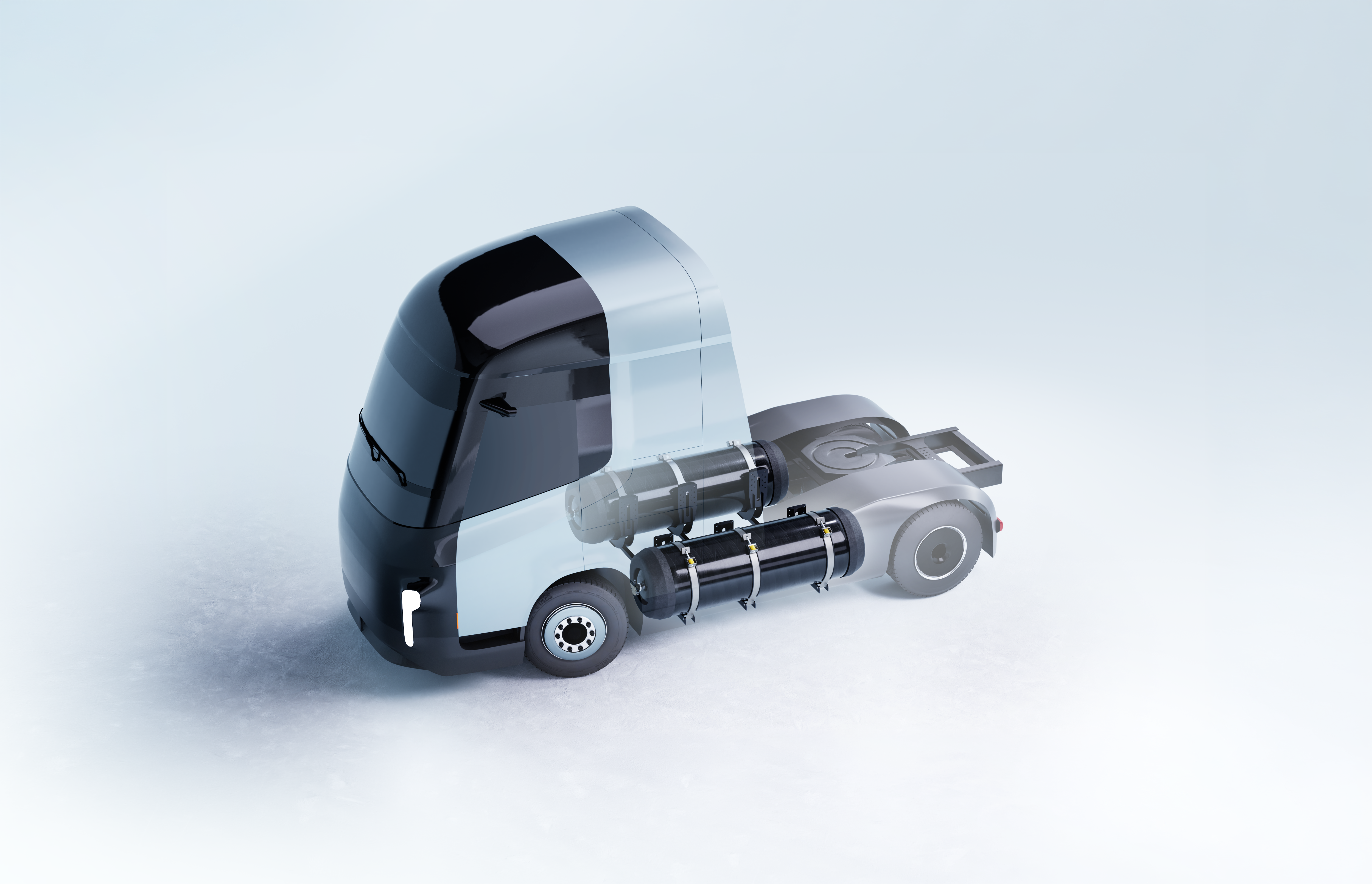

High pressure hydrogen composite cylinders for trucks

FORVIA has successfully industrialized hydrogen storage systems for leading commercial vehicle manufacturers, supporting applications ranging from light commercial vehicles to heavy-duty trucks.

Its technologies have been deployed in programs including:

- Stellantis hydrogen light commercial vehicles

- Hyundai XCIENT hydrogen trucks

- Renault Hyvia hydrogen mobility programs

- Savage hydrogen trucks


These projects demonstrate FORVIA's ability to deliver scalable hydrogen storage solutions that help OEMs improve vehicle range, operational efficiency and fleet economics.

High capacity hydrogen storage tanks for buses and coaches

FORVIA's expertise also supports the development of hydrogen-powered passenger transportation.

A recent example is the Setra H₂ Coach prototype from Daimler Buses, equipped with two FORVIA Type IV 70 MPa hydrogen cylinders providing a total onboard hydrogen capacity of 46 kg. Testing over several thousand kilometers, including routes through the Italian Alps, has demonstrated the reliability and robustness of FORVIA's hydrogen storage technology in demanding operating conditions.

Leveraging a broad portfolio of composite hydrogen vessels, FORVIA develops storage solutions for:

- City buses

- Intercity buses

- Long-distance coaches

- Regional and high-capacity passenger transportation

Pioneering the future of hydrogen mobility

Hydrogen will play a key role in intensive mobility applications requiring long range, high vehicle utilization and fast refueling.

With decades of expertise in composite pressure vessels and automotive industrialization, FORVIA helps manufacturers accelerate the deployment of hydrogen-powered commercial vehicles, buses and coaches through performant, affordable and scalable hydrogen storage solutions.


A large off-the-shelf hydrogen Type 4 cylinders portfolio


CYLINDER IDWORKING PRESSURE (MPa)DIAMETER (mm)LENGTH (mm)WATER VOLUME (L)TANK MASS (kg)H2 CAPACITY (kg)APPROVAL
35-M8_IV354192096196764,7EC79 / UNECE R134
35-M10_IV354501968229625,5UNECE R134-02 planned
70-S4_IV70235190746391,8UNECE R134 planned
70-L3_IV70479  1881 218113 8,8UNECE R134-02 planned
70-L2_IV70 4792149 251 128 10,0 UNECE R134-02
 70-XL7_IV 7058213732071048,3 UNECE R134-02 planned
 70-XL6_IV70 578 1950  329 159 13,2 UNECE R134-02 planned
 70-XL3_IV70 620 2144 400 244 16,0

GB/T 42612

UNECE R134-02

 70-XL4_IV70 694 2377 560 291 22,7  UNECE R134-02 planned

Note: Diameter and length values refer to maximal composite tank dimensions @ 125% NWP
